Realistic Atmosphere

Achieve more realistic visual rendering using atmospheric effects.

What you will learn in this tutorial:

• Adding Aerial Perspective effects
• Configuring sky, sun, and star descriptors
• Adding cloud effects
• Setting up tone mapping and anti-aliasing
• Adding rain and snow effects
• Configuring water surface materials (using GSI MVT data)

Adding the Aerial Perspective Effect

Aerial Perspective applies a haze and atmospheric depth effect based on distance. Using DefaultPlugin, all default descriptors are registered, and addDefaultPhotorealScene() sets up a photorealistic scene in one call.

import ThreeView, { JAPAN_GSI_ELEVATION_DECODER } from "@navaramap/three";
import { DefaultPlugin, type DefaultDescriptions } from "@navaramap/three_default_plugin";

const plugin = new DefaultPlugin();
const view = new ThreeView<DefaultDescriptions>({ shadow: true });
view.addPlugin(plugin);
await view.init();

// Set up a photorealistic scene in one call (sky, sunlight, stars, atmospheric effects, tone mapping, anti-aliasing, etc.)
const layers = plugin.addDefaultPhotorealScene();

// Adjust Aerial Perspective as needed
layers.aerialPerspective.update({
  aerialPerspective: {
    irradiance: true, // Deferred lighting (required for displaying cloud shadows)
  },
});

const photoSource = view.addSource({
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Latest Nationwide Photo (Seamless)
  //   https://maps.gsi.go.jp/development/ichiran.html
  type: "raster-tile",
  url: "https://cyberjapandata.gsi.go.jp/xyz/seamlessphoto/{z}/{x}/{y}.jpg",
  maxZoom: 23,
});
view.addLayer({
  type: "raster",
  source: photoSource,
});

const terrainSource = view.addSource({
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Digital Elevation Map
  //   https://maps.gsi.go.jp/development/ichiran.html
  type: "raster-dem",
  url: "https://cyberjapandata.gsi.go.jp/xyz/dem_png/{z}/{x}/{y}.png",
  elevationDecoder: JAPAN_GSI_ELEVATION_DECODER(),
  minZoom: 6,
  maxZoom: 15,
});
view.addLayer({
  type: "terrain",
  source: terrainSource,
  terrain: {
    castShadow: true,
    receiveShadow: true,
  },
});

view.addLayer({
  type: "raster",
  source: terrainSource,
  hillshade: {},
});

view.setCamera({ lng: 139.7511, lat: 35.6736, height: 400, heading: -100, pitch: -20, roll: 0 });

With addDefaultPhotorealScene(), atmospheric descriptors such as sky, sunlight, stars, and skylight probe are also automatically added. To cast shadows, update the sunlight settings.

layers.sun.update({ sun: { castShadow: true } }); // Cast shadows

Notes on irradiance

Enabling irradiance may cause unstable rendering of transparent materials (such as glass). If you use many transparent objects, consider setting irradiance: false.

Setting Up Tone Mapping and Anti-Aliasing

Configure tone mapping, exposure, and anti-aliasing for a natural HDR look.

// Tone mapping
layers.toneMapping.update({ toneMapping: { mode: ToneMappingMode.AGX } });
view.toneMappingExposure = 10; // Adjust according to the scene

// Anti-aliasing
// addDefaultPhotorealScene() automatically selects SMAA for desktop and FXAA for mobile optimization

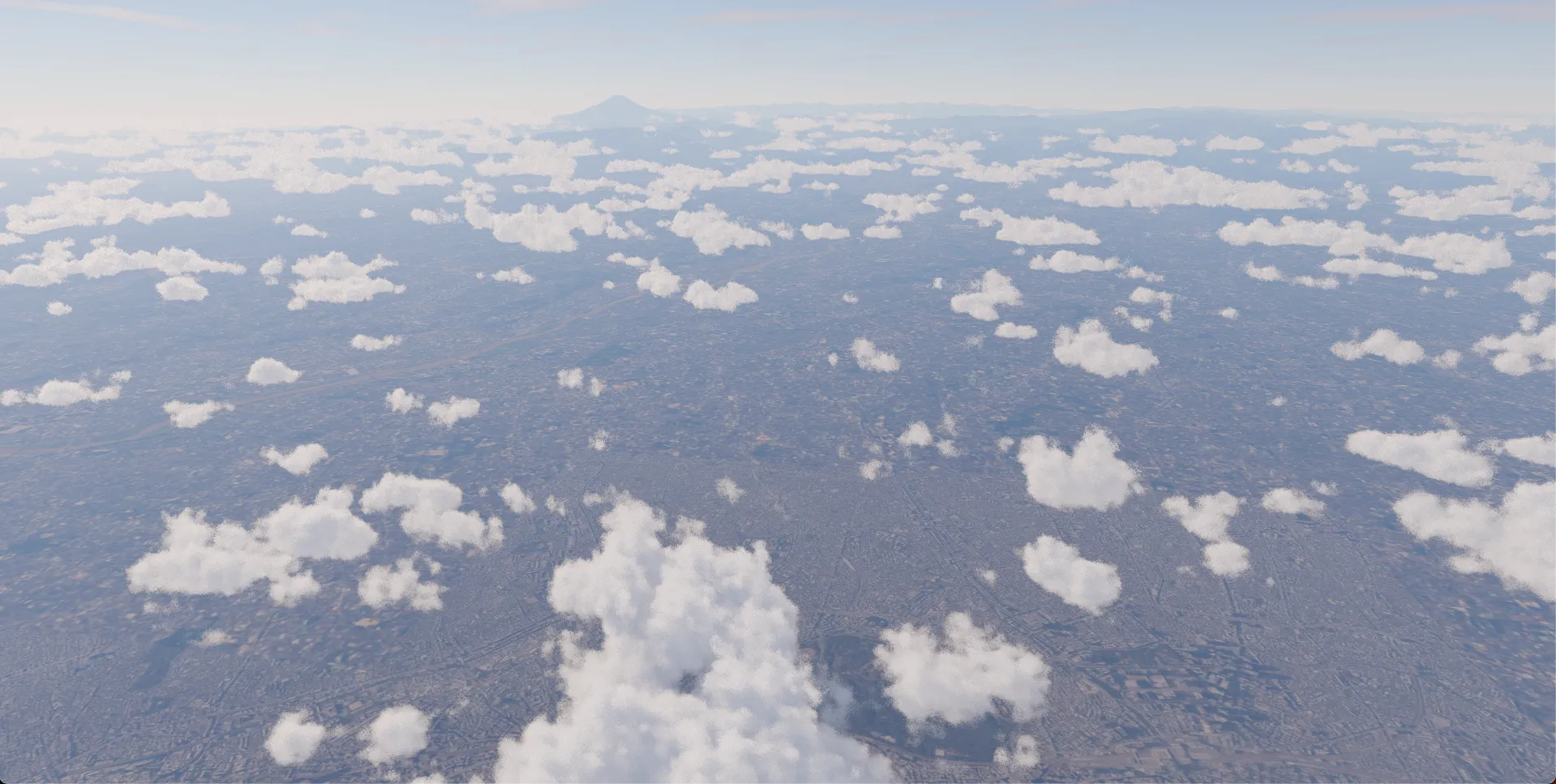

Adding Cloud Effects

Overlaying volumetric cloud effects enhances the sense of realism. Start with the default settings and adjust shadows and density as needed.

const clouds = view.addEffect<CloudsEffectDesc>({
  clouds: {},
});

// Example: Enable cloud shadows
clouds.update({ clouds: { shadows: true } });

Adding Rain Effects

Rain effects use a combination of two objects. RainMeshDesc renders 3D raindrop particles in the scene, and RainDropEffectDesc provides a post-processing effect of water droplets on the screen.

3D Raindrop Particles

// Enable the animation loop to keep rain animation running
view.animation = true;

// Add rain object
const rain = view.addMesh<RainMeshDesc>({
  rain: {
    particleCount: 5000, // Number of raindrops
    speed: 0.0015,             // Fall speed
    opacity: 1.0,         // Opacity
    width: 3,          // Raindrop width
    height: 60.0,          // Raindrop length
    areaWidth: 500,       // Rainfall area width (m)
    areaHeight: 1000,      // Rainfall area height (m)
    maxHeight: 10000,       // Maximum rainfall area height (m)
  },
});

Screen Water Droplet Effect

A post-processing effect that simulates water droplets adhering to the camera lens during rainy weather.

const rainDropEffect = view.addEffect<RainDropEffectDesc>({
  rainDrop: {
    opacity: 0.8,           // Overall effect opacity
    dropGridSize: 14,       // Water droplet grid size
    dropDensity: 0.1,       // Water droplet density
    dropSizeFactor: 0.025,  // Water droplet size factor
  },
});

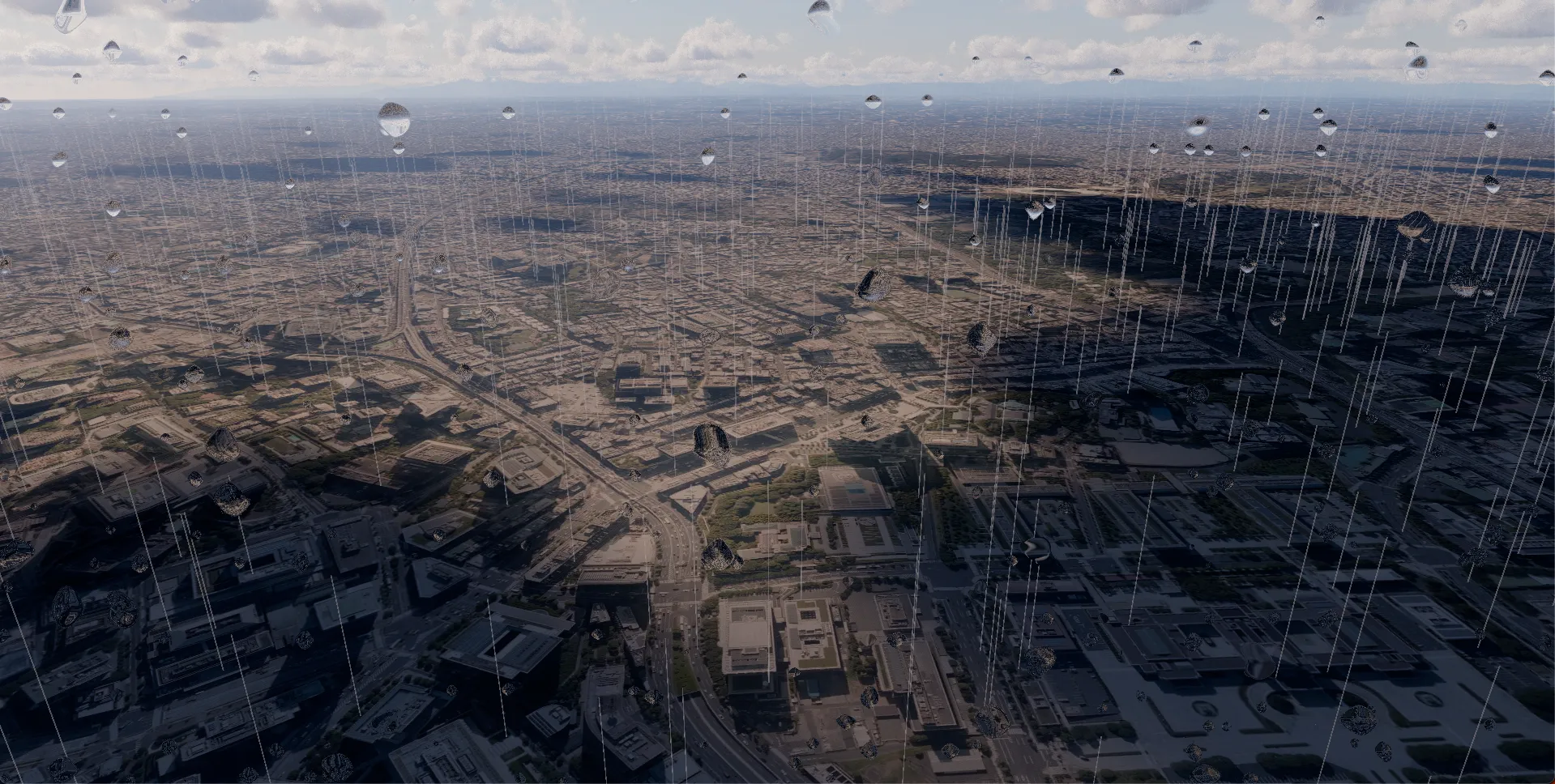

Combining Rain Effects

Enabling both RainMeshDesc and RainDropEffectDesc simultaneously allows for a more immersive rain effect.

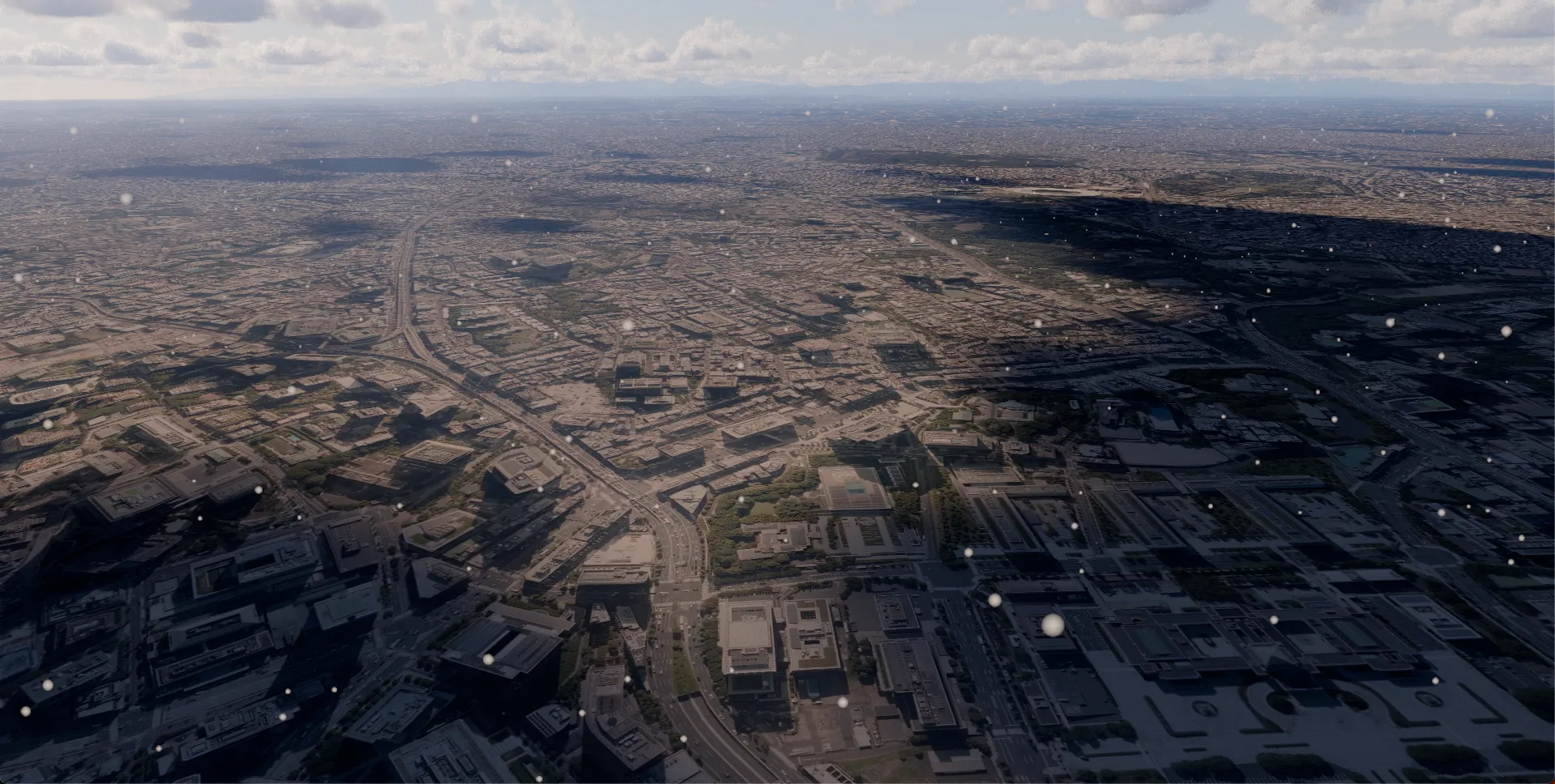

Adding Snow Effects

For snow effects, use SnowMeshDesc. Remove the rain object and add it instead.

// Add snow object
const snow = view.addMesh<SnowMeshDesc>({
  snow: {
    particleCount: 5000,  // Number of snowflakes
    speed: 0.00005,           // Fall speed
    size: 10,              // Snowflake size
    opacity: 1,         // Opacity
    areaWidth: 500,       // Snowfall area width (m)
    areaHeight: 1000,      // Snowfall area height (m)
    maxHeight: 3000,       // Maximum snowfall area height (m)
    // Wind-driven sway
    movementStrength: { x: 50, y: 20, z: 50 }, // Sway amplitude for each axis
    movementSpeed: { x: 0.0005, y: 0.0002, z: 0.0005 }, // Sway speed for each axis
  },
});

Performance Note

Increasing particleCount makes the effect more realistic, but may impact performance on mobile devices. Adjust as needed.

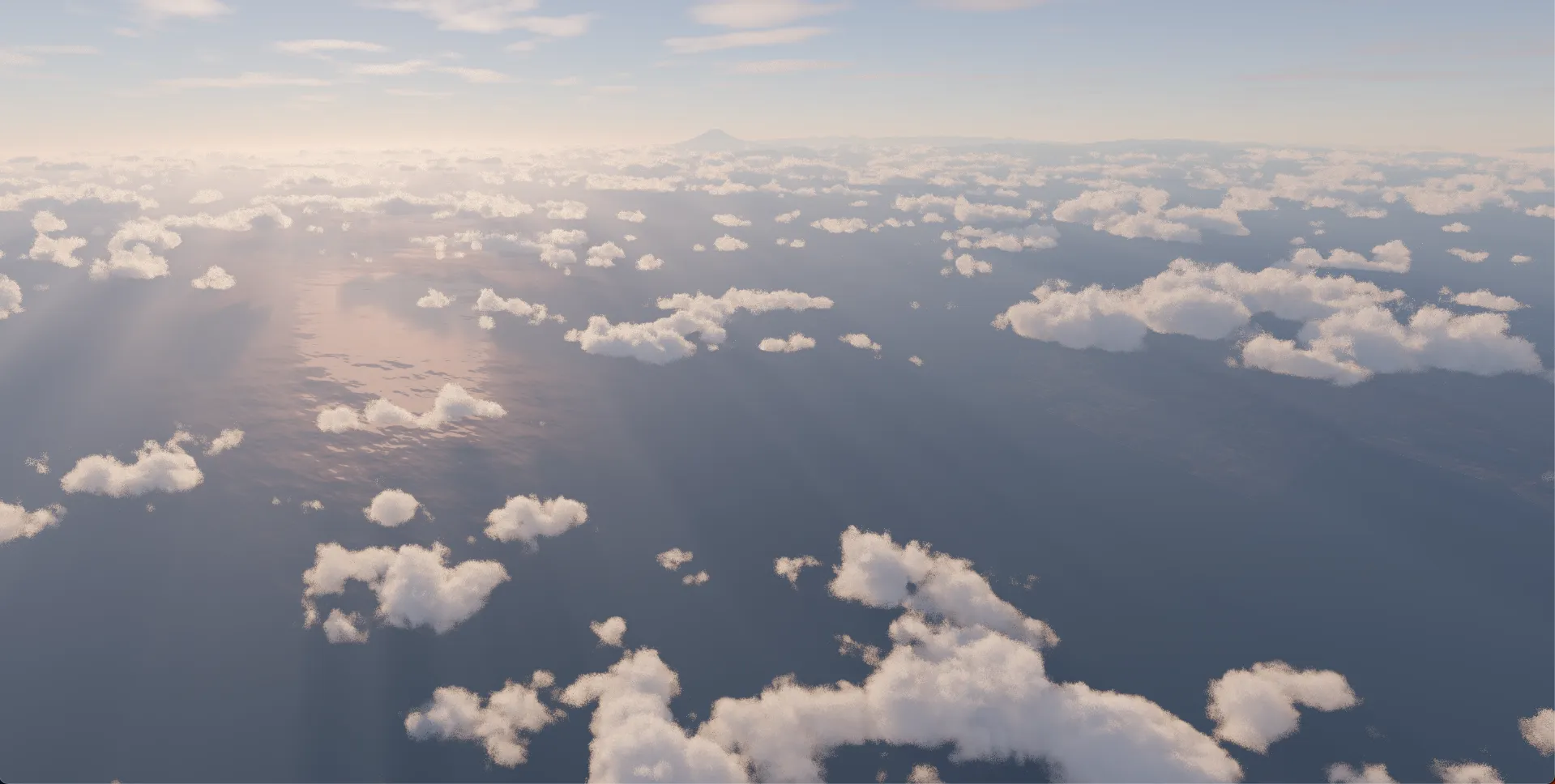

Adding Water Surface Materials (GSI MVT Data)

The Geospatial Information Authority of Japan’s experimental vector tiles (experimental_bvmap) include water area data such as rivers and lakes. Using the water: true option applies a water surface material with ripples.

Required ThreeView Option

To use the water surface material, you must enable waterTexture when constructing ThreeView. Without it, the water: true option on the layer will have no effect.

const view = new ThreeView<DefaultDescriptions>({
  waterTexture: { enabled: true },
  // ...other options
});

// Add water area layer from GSI experimental vector tiles
const waterSource = view.addSource({
  // Credit: Geospatial Information Authority of Japan Vector Tile Experimental Service
  // https://github.com/gsi-cyberjapan/gsimaps-vector-experiment
  type: "vector-tile",
  url: "https://cyberjapandata.gsi.go.jp/xyz/experimental_bvmap/{z}/{x}/{y}.pbf",
  maxZoom: 16,
});
view.addLayer({
  type: "vector",
  source: waterSource,
  sourceLayers: ["waterarea"], // Use only the water area layer
  polygon: {
    color: new Color().setStyle("#001e0f"),
    reflectivity: 0.2,    // Reflectivity
    clampToGround: true,  // Clamp to terrain
    water: true,          // Enable water surface material
  },
});

view.atmosphere.date = new Date("2026-01-01T16:00:00+09:00"); // January 1, 16:00 JST
view.setCamera({ lng: 140.0372145462, lat: 35.6059411903, height: 3880, heading: -98.4184014976, pitch: -18.0000012192, roll: 0 });

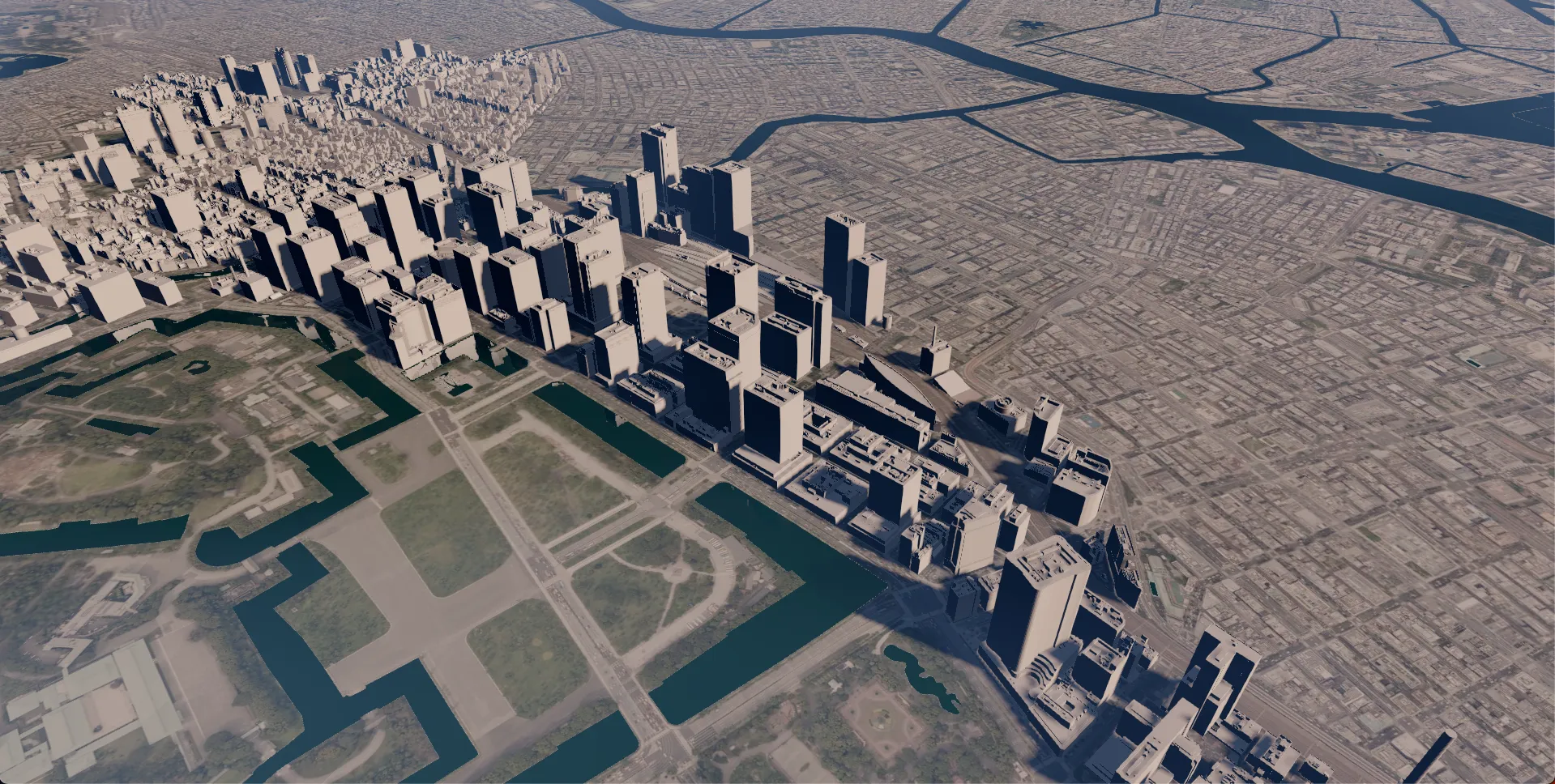

Combining with SSR (Screen Space Reflections)

Adding SSREffectDesc enables real-time reflections of buildings and other objects on the water surface.

// Add PLATEAU building models
const plateauSource = view.addSource({
  // Credit:
  // - 3D City Model (Project PLATEAU) Chiyoda Ward (FY2023) - MLIT PLATEAU
  //   https://www.geospatial.jp/ckan/dataset/plateau-13101-chiyoda-ku-2023
  type: "3d-tiles",
  url: "https://assets.cms.plateau.reearth.io/assets/db/070026-aa27-431b-8d53-7cc6b03244f8/13101_chiyoda-ku_pref_2023_citygml_1_op_bldg_3dtiles_13101_chiyoda-ku_lod2_no_texture/tileset.json",
});
view.addLayer({
  type: "3d-tiles",
  source: plateauSource,
  model: {
    show: true,
    color: new Color().setStyle("#ffffff"),
    metalness: 0,
    roughness: 0.5,
    height: -50, // Adjust ellipsoidal height
    castShadow: true,
    receiveShadow: true,
  },
});

// Add SSR effect
view.addEffect<SSREffectDesc>({
  ssr: {},
});

view.atmosphere.date = new Date("2026-01-01T12:00:00+09:00"); // January 1, 12:00 JST

view.setCamera({
  lng: 139.7511145474829,
  lat: 35.67364356091717,
  height: 902.0,
  heading: 64.41840149763287,
  pitch: -36.00000121921312,
  roll: 0,
});

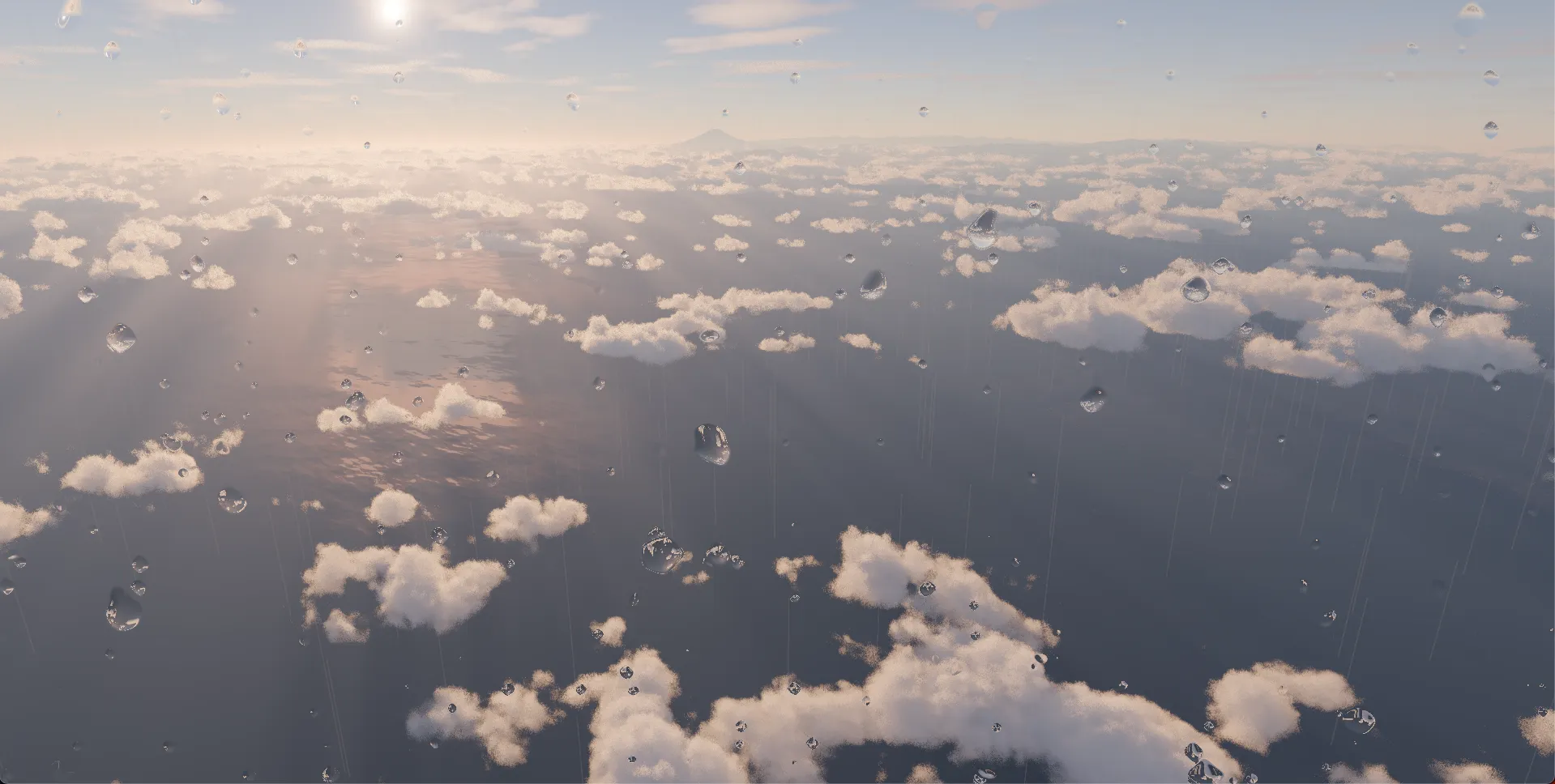

Complete Example

Below is a complete example combining atmospheric effects, rain, and water surface materials.

import ThreeView, { Color, JAPAN_GSI_ELEVATION_DECODER } from "@navaramap/three";
import { type CloudsEffectDesc, type RainDropEffectDesc, type RainMeshDesc, type SnowMeshDesc, type SSREffectDesc, ToneMappingMode } from "@navaramap/three_default_descs";
import { DefaultPlugin, type DefaultDescriptions } from "@navaramap/three_default_plugin";

const plugin = new DefaultPlugin();
const view = new ThreeView<DefaultDescriptions>({
  shadow: true,
  animation: true,
  waterTexture: {
    enabled: true
  },
});
view.addPlugin(plugin);
await view.init();

// Set up a photorealistic scene in one call
const layers = plugin.addDefaultPhotorealScene();

// Adjust Aerial Perspective as needed
layers.aerialPerspective.update({
  aerialPerspective: {
    irradiance: true, // Deferred lighting (required for displaying cloud shadows)
  },
});

const photoSource = view.addSource({
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Latest Nationwide Photo (Seamless)
  //   https://maps.gsi.go.jp/development/ichiran.html
  type: "raster-tile",
  url: "https://cyberjapandata.gsi.go.jp/xyz/seamlessphoto/{z}/{x}/{y}.jpg",
  maxZoom: 23,
});
view.addLayer({
  type: "raster",
  source: photoSource,
});

const terrainSource = view.addSource({
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Digital Elevation Map
  //   https://maps.gsi.go.jp/development/ichiran.html
  type: "raster-dem",
  url: "https://cyberjapandata.gsi.go.jp/xyz/dem_png/{z}/{x}/{y}.png",
  elevationDecoder: JAPAN_GSI_ELEVATION_DECODER(),
  minZoom: 6,
  maxZoom: 15,
});
view.addLayer({
  type: "terrain",
  source: terrainSource,
  terrain: {
    castShadow: true,
    receiveShadow: true,
  },
});

view.addLayer({
  type: "raster",
  source: terrainSource,
  hillshade: {},
});

layers.sun.update({ sun: { castShadow: true } }); // Cast shadows

// Tone mapping
layers.toneMapping.update({ toneMapping: { mode: ToneMappingMode.AGX } });
view.toneMappingExposure = 10; // Adjust according to the scene

const clouds = view.addEffect<CloudsEffectDesc>({
  clouds: {
    qualityPreset: "high"
  },
});

// Enable cloud shadows
clouds.update({ clouds: { shadows: true } });

view.addMesh<RainMeshDesc>({
  rain: {
    particleCount: 5000, // Number of raindrops
    speed: 0.0015,             // Fall speed
    opacity: 1.0,         // Opacity
    width: 3,          // Raindrop width
    height: 60.0,          // Raindrop length
    areaWidth: 500,       // Rainfall area width (m)
    areaHeight: 1000,      // Rainfall area height (m)
    maxHeight: 10000,       // Maximum rainfall area height (m)
  },
});

view.addEffect<RainDropEffectDesc>({
  rainDrop: {
    opacity: 0.8,           // Overall effect opacity
    dropGridSize: 14,       // Water droplet grid size
    dropDensity: 0.1,       // Water droplet density
    dropSizeFactor: 0.025,  // Water droplet size factor
  },
});

// Add water area layer from GSI experimental vector tiles
const waterSource = view.addSource({
  // Credit: Geospatial Information Authority of Japan Vector Tile Experimental Service
  // https://github.com/gsi-cyberjapan/gsimaps-vector-experiment
  type: "vector-tile",
  url: "https://cyberjapandata.gsi.go.jp/xyz/experimental_bvmap/{z}/{x}/{y}.pbf",
  maxZoom: 16,
});
view.addLayer({
  type: "vector",
  source: waterSource,
  sourceLayers: ["waterarea"], // Use only the water area layer
  polygon: {
    color: new Color().setStyle("#001e0f"),
    reflectivity: 0.02,    // Reflectivity
    clampToGround: true,  // Clamp to terrain
    water: true,          // Enable water surface material
  },
});

// Add PLATEAU building models
const plateauSource = view.addSource({
  // Credit:
  // - 3D City Model (Project PLATEAU) Chiyoda Ward (FY2023) - MLIT PLATEAU
  //   https://www.geospatial.jp/ckan/dataset/plateau-13101-chiyoda-ku-2023
  type: "3d-tiles",
  url: "https://assets.cms.plateau.reearth.io/assets/db/070026-aa27-431b-8d53-7cc6b03244f8/13101_chiyoda-ku_pref_2023_citygml_1_op_bldg_3dtiles_13101_chiyoda-ku_lod2_no_texture/tileset.json",
});
view.addLayer({
  type: "3d-tiles",
  source: plateauSource,
  model: {
    show: true,
    color: new Color().setStyle("#ffffff"),
    metalness: 0,
    roughness: 0.5,
    height: -50, // Adjust ellipsoidal height
    castShadow: true,
    receiveShadow: true,
  },
});

// Add SSR effect
view.addEffect<SSREffectDesc>({
  ssr: {
  },
});

view.atmosphere.date = new Date("2026-01-01T16:00:00+09:00"); // January 1, 16:00 JST

view.setCamera({ lng: 140.0372145462, lat: 35.6059411903, height: 3880, heading: -98.4184014976, pitch: -18.0000012192, roll: 0 });

Tips for a Natural Look

• 3D Tiles models: Adjust roughness/metalness and properly enable castShadow/receiveShadow
• Time of day adjustment: Set the time with an ISO string including a timezone offset, e.g. new Date("2026-01-01T08:00:00+09:00")
• Weather switching: Rain and snow can be toggled using the .visible property
• Water surface adjustment: Adjust wave motion with waterSpeed and waterScaleNormal
