Arch Line Visualization

Learn how to visualize air traffic volume data between airports using arch lines (great circle routes lifted into arcs). This tutorial combines data-driven color mapping, animation, and glow effects to create a beautiful visualization.

What you will learn in this tutorial:

• Setting up a dark-themed globe view
• Configuring starfield, ambient light, and tone mapping
• Loading and processing GeoJSON data
• Data-driven color mapping using ColorMap
• Efficiently rendering multiple arch lines
• Expressing flow with dash animation
• Making the globe look beautiful with a glow effect

Basic Implementation

First, create the base view. Set a dark background color and add a starfield and satellite imagery tiles.

import ThreeView, { Color } from "@navaramap/three";
import { ToneMappingMode } from "@navaramap/three_default_descs";
import { DefaultPlugin, type DefaultDescriptions } from "@navaramap/three_default_plugin";

const plugin = new DefaultPlugin();
const view = new ThreeView<DefaultDescriptions>({
  backgroundColor: new Color().setStyle("#0b0a0d"),
});
view.addPlugin(plugin);

await view.init();

// Adjust tone mapping exposure
view.toneMappingExposure = 10;

// Add ambient light
view.addLight({
  ambient: {},
});

// Add starfield
view.addMesh({
  stars: {
    intensity: 100,
    pointSize: 1.5,
  },
});

// Add tone mapping effect
view.addEffect({
  toneMapping: {
    mode: ToneMappingMode.REINHARD2,
  },
});

// Add anti-aliasing (SMAA)
view.addEffect({
  smaa: {
    quality: "ultra",
  },
});

// Base satellite imagery tiles
const satelliteSource = view.addSource({
  type: "raster-tile",
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Latest Nationwide Photo (Seamless)
  //   https://maps.gsi.go.jp/development/ichiran.html
  url: "https://cyberjapandata.gsi.go.jp/xyz/seamlessphoto/{z}/{x}/{y}.jpg",
  maxZoom: 6,
  minZoom: 2,
});
view.addLayer({
  type: "raster",
  source: satelliteSource,
});

// Set camera to a position where the entire globe is visible
view.setCamera({ lng: 140, lat: 20, height: 12_600_000, heading: 0, pitch: -90, roll: 0 });

Choosing ToneMappingMode

• ToneMappingMode.REINHARD2: Produces a natural look, suitable for dark scenes
• ToneMappingMode.AGX: Enables a more cinematic appearance
• Adjust toneMappingExposure according to the scene brightness

Adding Night Tiles

To create a more beautiful nighttime Earth, overlay night tiles (NASA Earth at Night).

// Add night tiles (overlaid with transparency)
const nightSource = view.addSource({
  type: "raster-tile",
  // Credit:
  // - NASA Earth at Night imagery (Converted as raster tiles)
  url: "/data/blue-marble-night/{z}/{x}/{y}.webp",
  maxZoom: 6,
  minZoom: 1,
});
view.addLayer({
  type: "raster",
  source: nightSource,
  raster: {
    opacity: 0.8, // Overlay with transparency
  },
});

Preparing Night Tiles

You need to convert NASA Earth at Night imagery to XYZ tile format. Download from NASA Earth Observatory and convert using tools such as gdal.

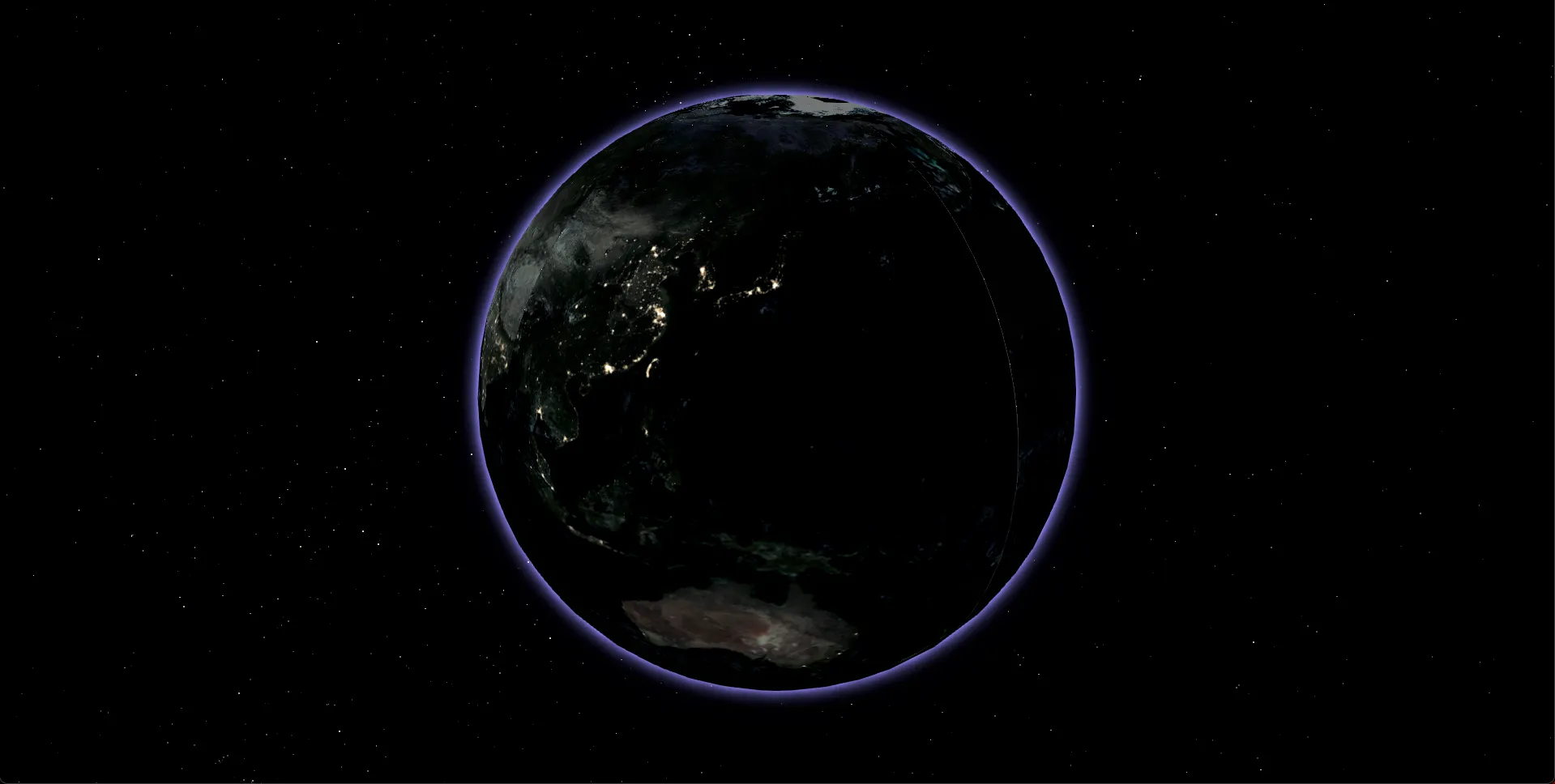

Adding a Glow Effect

Using GlowGlobeMeshDesc, you can add a beautiful glow effect around the globe.

import type { GlowGlobeMeshDesc } from "@navaramap/three_default_descs";

// Add globe glow effect
view.addMesh<GlowGlobeMeshDesc>({
  glowGlobe: {
    radiusScale: 1.2,  // Glow radius (multiplier relative to Earth's radius)
    coefficient: 0.43, // Glow intensity coefficient
    exponent: 40.0,    // Glow falloff rate
    glowColor: new Color().setStyle("#938cff"),
    opacity: 0.5,      // Opacity
  },
});

Customizing the Glow

• radiusScale: Increasing this value makes the glow spread wider
• coefficient: Increasing this value makes the glow brighter
• exponent: Increasing this value makes the glow boundary sharper
• glowColor: Adjust the color to match your scene

Loading GeoJSON Data

Load air traffic volume data between airports in GeoJSON format. Here we use the inter-airport flow volume data from the National Land Numerical Information service.

import type { FeatureCollection, MultiLineString } from "geojson";

// Type definition for air traffic volume data
type AirportTrafficData = FeatureCollection<
  MultiLineString,
  {
    S10b_001: string; // Departure airport
    S10b_004: string; // Arrival airport
    S10b_005: number; // Distance
    S10b_006: number; // Number of flights
    S10b_007: number; // Number of passengers
    S10b_008: number; // Total transport volume
    S10b_009: number; // Cargo volume
  }
>;

// Fetch data
const response = await fetch("/data/airport-traffic-volume.geojson");
const data: AirportTrafficData = await response.json();

Data Preparation

Convert the inter-airport flow volume data from the National Land Numerical Information service to GeoJSON format for use.

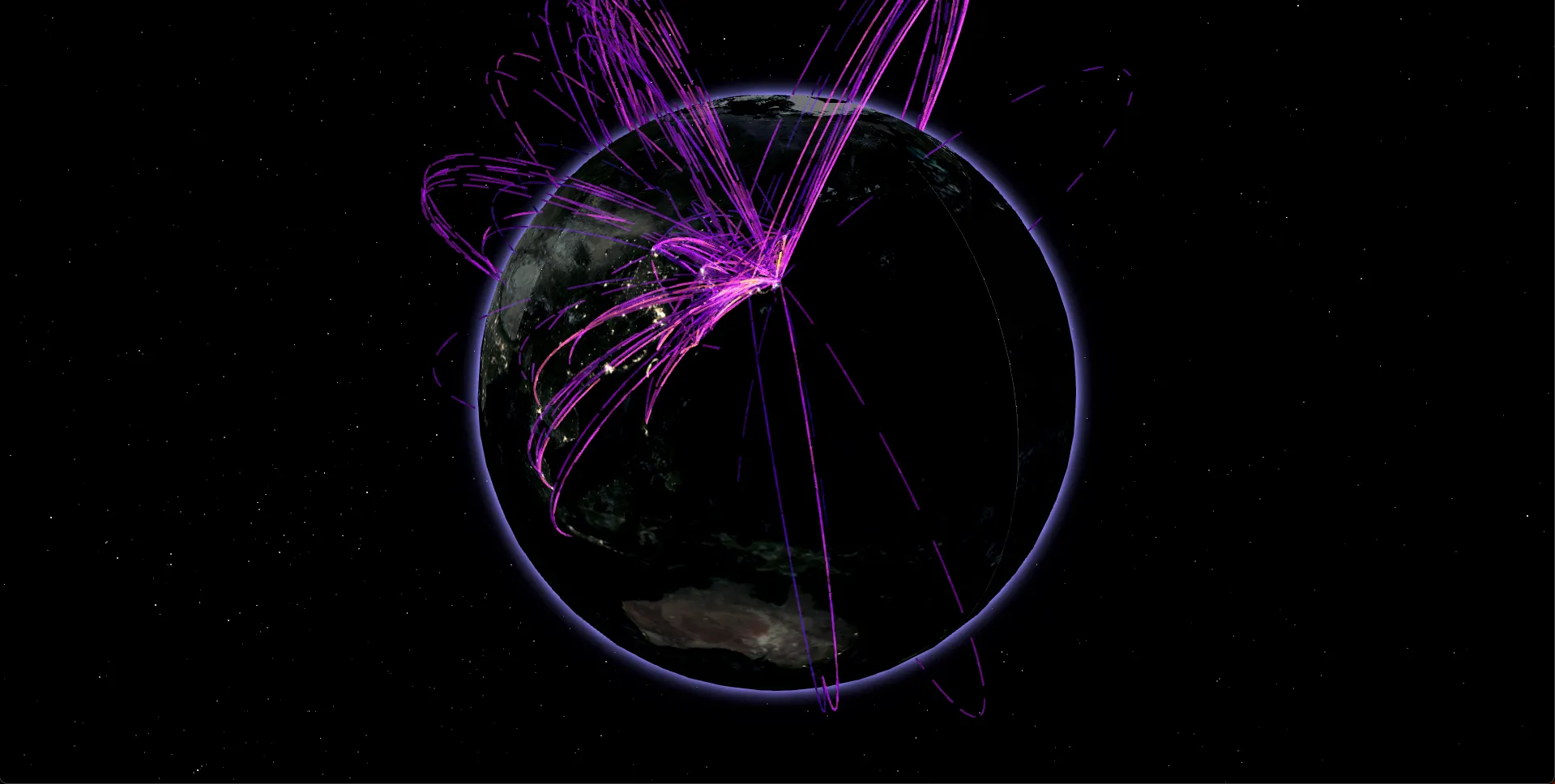

Data-Driven Color Mapping with ColorMap

Using the ColorMap class, you can map numerical data to colors. Here we assign colors based on the number of flights.

import { Color, ColorMap, geodeticToVector3, degreeToRadian } from "@navaramap/three";

// ref: https://matplotlib.org/stable/users/explain/colors/colormaps.html
const PLASMA_COLORMAP = new ColorMap("sequential", "Plasma", [
  [0.050383, 0.029803, 0.527975],
  [0.494877, 0.011990, 0.657865],
  [0.798216, 0.280197, 0.469538],
  [0.994324, 0.716681, 0.177208],
]);

// Get the maximum number of flights (normalized on a logarithmic scale)
const maxTrafficLog = Math.max(
  ...data.features.map((f) => Math.log(f.properties.S10b_006 + 1))
);

// Convert each GeoJSON feature to an arch line definition
const arcLines = data.features.map((feature) => {
  const coords = feature.geometry.coordinates[0];
  const source = { lng: coords[0][0], lat: coords[0][1] };
  const destination = { lng: coords[1][0], lat: coords[1][1] };

  // Calculate distance between two points (used for animation speed adjustment)
  const srcVec = geodeticToVector3({
    lat: degreeToRadian(source.lat),
    lng: degreeToRadian(source.lng),
    height: 0,
  });
  const destVec = geodeticToVector3({
    lat: degreeToRadian(destination.lat),
    lng: degreeToRadian(destination.lng),
    height: 0,
  });
  const distance = srcVec.distanceTo(destVec);

  // Normalize flight count on a logarithmic scale (0 to 1)
  const trafficVolume = feature.properties.S10b_006;
  const trafficVolumeLog = Math.log(trafficVolume + 1);
  const normalizedTraffic = trafficVolumeLog / maxTrafficLog;

  // Get color from ColorMap
  const [r, g, b] = PLASMA_COLORMAP.linear(normalizedTraffic);
  const color = new Color().setRGB(r, g, b);

  return {
    thickness: 1.2,
    transparent: true,
    opacity: 0.3,
    segments: 64,
    height: 0,
    arcHeightScale: 0.3,
    srcColor: color,
    tgtColor: color,
    dashed: true,
    dashSize: 500000,
    dashOffset: Math.random() * 1000000, // Random initial offset
    gapSize: 800000,
    geometry: [source, destination],
    distance, // Used for animation speed calculation
  };
});

Using Logarithmic Scale

When data distribution is skewed (a few high values and many low values), using a logarithmic scale Math.log(x + 1) makes the color distribution more even.

ColorMap Details

For details on ColorMap class methods (linear(), quantize(), etc.), see the ColorMap class reference.

Adding the Arch Line Object

Add the arch line definitions as an object.

import type { ArclineMeshDesc } from "@navaramap/three_default_descs";

const arcLineHandle = view.addMesh<ArclineMeshDesc>({
  arcLines,
});

Adding Dash Animation

Use requestAnimationFrame to update the dash offset and express flow directionality. Adjusting the animation speed based on distance creates a more natural appearance.

// Dash animation - flows from origin to destination
const dashAnimFunc = () => {
  arcLines.forEach((arcLineDef) => {
    // Calculate animation speed based on distance
    const baseSpeed = 5000;
    const distance = arcLineDef.distance || 1;
    const speedMultiplier = Math.sqrt(distance / 2000000);
    const speed = baseSpeed * speedMultiplier;

    arcLineDef.dashOffset = (arcLineDef.dashOffset ?? 0) + speed;
  });

  arcLineHandle.update({ arcLines });
  requestAnimationFrame(dashAnimFunc);
};

// Start animation
dashAnimFunc();

Adjusting Animation Speed

• baseSpeed: Base speed. Increasing it makes the overall animation faster
• speedMultiplier: Distance-based multiplier. Using Math.sqrt makes longer distances faster and shorter distances slower
• Using a linear scale (distance / 2000000) may result in long distances being too fast and short distances being too slow

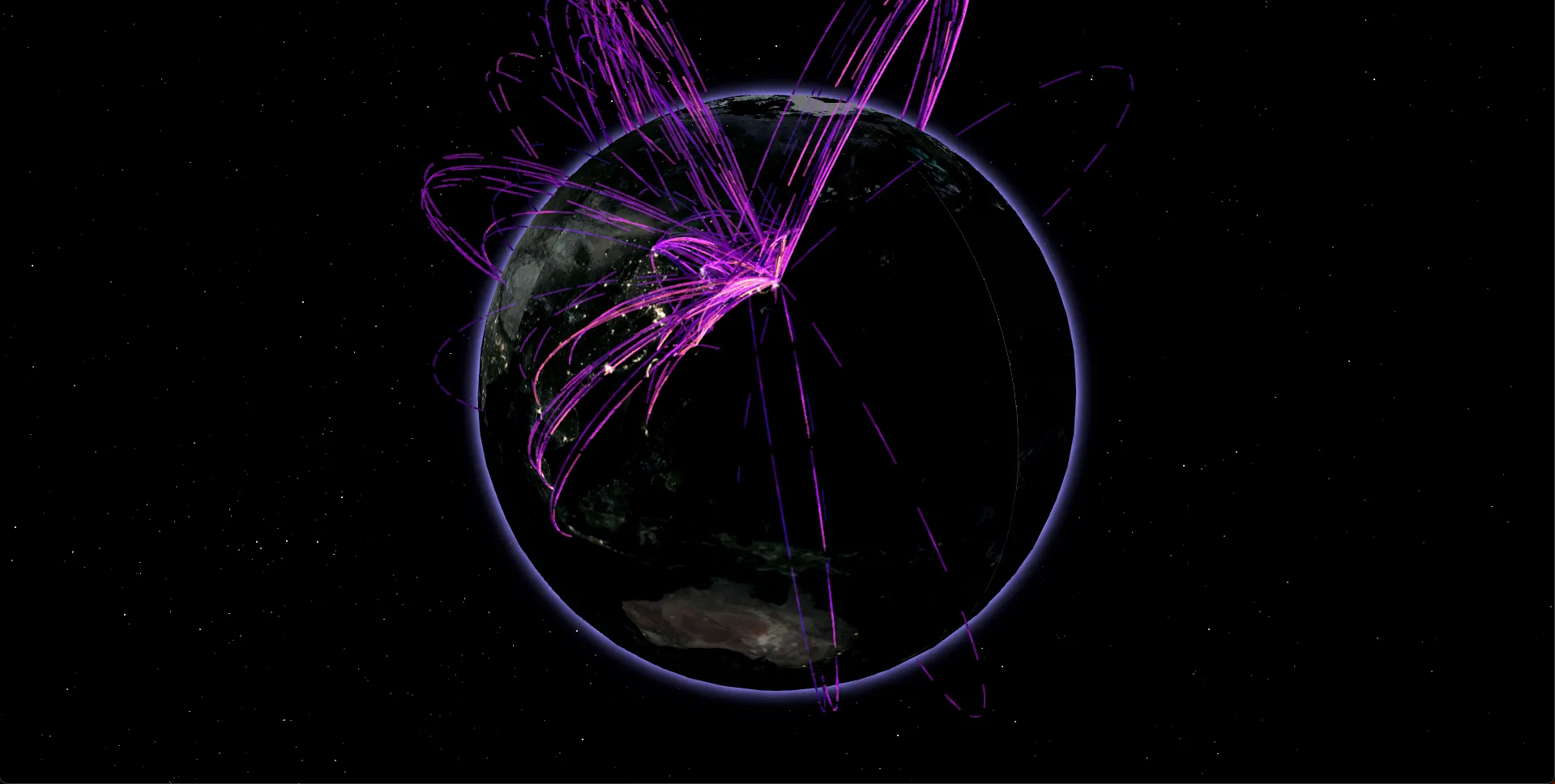

Complete Example

Below is a complete example that visualizes air traffic volume between airports.

import ThreeView, {
  Color,
  ColorMap,
  geodeticToVector3,
  degreeToRadian,
} from "@navaramap/three";
import {
  ToneMappingMode,
  type ArclineMeshDesc,
  type GlowGlobeMeshDesc,
} from "@navaramap/three_default_descs";
import { DefaultPlugin, type DefaultDescriptions } from "@navaramap/three_default_plugin";
import type { FeatureCollection, MultiLineString } from "geojson";

// Type definition for air traffic volume data
type AirportTrafficData = FeatureCollection<
  MultiLineString,
  {
    S10b_001: string;
    S10b_004: string;
    S10b_005: number;
    S10b_006: number;
    S10b_007: number;
    S10b_008: number;
    S10b_009: number;
  }
>;

// ref: https://matplotlib.org/stable/users/explain/colors/colormaps.html
const PLASMA_COLORMAP = new ColorMap("sequential", "Plasma", [
  [0.050383, 0.029803, 0.527975],
  [0.494877, 0.011990, 0.657865],
  [0.798216, 0.280197, 0.469538],
  [0.994324, 0.716681, 0.177208],
]);

// Construct data
const constructData = async () => {
  const response = await fetch("/data/airport-traffic-volume.geojson");
  const data: AirportTrafficData = await response.json();

  const maxTrafficLog = Math.max(
    ...data.features.map((f) => Math.log(f.properties.S10b_006 + 1))
  );

  const arcLines = data.features.map((feature) => {
    const coords = feature.geometry.coordinates[0];
    const source = { lng: coords[0][0], lat: coords[0][1] };
    const destination = { lng: coords[1][0], lat: coords[1][1] };

    const srcVec = geodeticToVector3({
      lat: degreeToRadian(source.lat),
      lng: degreeToRadian(source.lng),
      height: 0,
    });
    const destVec = geodeticToVector3({
      lat: degreeToRadian(destination.lat),
      lng: degreeToRadian(destination.lng),
      height: 0,
    });
    const distance = srcVec.distanceTo(destVec);

    const trafficVolume = feature.properties.S10b_006;
    const trafficVolumeLog = Math.log(trafficVolume + 1);
    const normalizedTraffic = trafficVolumeLog / maxTrafficLog;

    const [r, g, b] = PLASMA_COLORMAP.linear(normalizedTraffic);
    const color = new Color().setRGB(r, g, b);

    return {
      thickness: 1.2,
      transparent: true,
      opacity: 0.3,
      segments: 64,
      height: 0,
      arcHeightScale: 0.3,
      srcColor: color,
      tgtColor: color,
      dashed: true,
      dashSize: 500000,
      dashOffset: Math.random() * 1000000,
      gapSize: 800000,
      geometry: [source, destination],
      distance,
    };
  });

  return { arcLines };
};

// Main function
async function run() {
  const plugin = new DefaultPlugin();
  const view = new ThreeView<DefaultDescriptions>({
    backgroundColor: new Color().setStyle("#0b0a0d"),
  });
  view.addPlugin(plugin);

  await view.init();

  view.atmosphere.date.setHours(8);
  view.toneMappingExposure = 10;

  // Ambient light
  view.addLight({
    ambient: {},
  });

  // Starfield
  view.addMesh({
    stars: {
      intensity: 100,
      pointSize: 1.5,
    },
  });

  // Tone mapping
  view.addEffect({
    toneMapping: {
      mode: ToneMappingMode.REINHARD2,
    },
  });

  // Anti-aliasing
  view.addEffect({
    smaa: {
      quality: "ultra",
    },
  });

  // Satellite imagery tiles
  const satelliteSource = view.addSource({
    type: "raster-tile",
    // Credit:
    // - Geospatial Information Authority of Japan Tiles - Latest Nationwide Photo (Seamless)
    //   https://maps.gsi.go.jp/development/ichiran.html
    url: "https://cyberjapandata.gsi.go.jp/xyz/seamlessphoto/{z}/{x}/{y}.jpg",
    maxZoom: 6,
    minZoom: 2,
  });
  view.addLayer({
    type: "raster",
    source: satelliteSource,
  });

  // Night tiles (optional)
  const nightSource = view.addSource({
    type: "raster-tile",
    // Credit:
    // - NASA Earth at Night imagery (Converted as raster tiles)
    url: "/data/blue-marble-night/{z}/{x}/{y}.webp",
    maxZoom: 6,
    minZoom: 1,
  });
  view.addLayer({
    type: "raster",
    source: nightSource,
    raster: {
      opacity: 0.8,
    },
  });

  // Glow effect
  view.addMesh<GlowGlobeMeshDesc>({
    glowGlobe: {
      radiusScale: 1.2,
      coefficient: 0.43,
      exponent: 40.0,
      glowColor: new Color().setStyle("#938cff"),
      opacity: 0.5,
    },
  });

  // Construct arch line data
  const { arcLines } = await constructData();

  // Add arch line object
  const arcLineHandle = view.addMesh<ArclineMeshDesc>({
    arcLines,
  });

  // Dash animation
  const dashAnimFunc = () => {
    arcLines.forEach((arcLineDef) => {
      const baseSpeed = 5000;
      const distance = arcLineDef.distance || 1;
      const speedMultiplier = Math.sqrt(distance / 2000000);
      const speed = baseSpeed * speedMultiplier;

      arcLineDef.dashOffset = (arcLineDef.dashOffset ?? 0) + speed;
    });

    arcLineHandle.update({ arcLines });
    requestAnimationFrame(dashAnimFunc);
  };
  dashAnimFunc();

  // Camera settings
  view.setCamera({ lng: 140, lat: 20, height: 12_600_000, heading: 0, pitch: -90, roll: 0 });
}

run();

Customization Tips

• Changing colors: Choose an appropriate colormap from ColorBrewer or matplotlib colormaps
• Changing thickness: Dynamically varying thickness based on data allows you to display routes with more flights as thicker lines
• Adjusting transparency: Adjust opacity to improve visibility of overlapping routes
• Camera angle: Adjust the camera position according to your purpose, such as Japan-centered, all of Asia, or the entire world
