Interior Explore

Learn how to explore the interior of 3D Tiles buildings while controlling a character with PersonViewPlugin from @navaramap/three_plugins. The plugin lets you wire up character controls with minimal code.

What you will learn in this tutorial:

• Loading 3D Tiles building models
• Driving a GLTF character with PersonViewPlugin
• Letting the character move underground and through buildings
• Switching between third-person and first-person view
• Teleporting the character when the scene changes

Setting Up the Basic Scene

First, build a scene for building exploration. Create a ThreeView with shadow and background color settings.

import ThreeView, { Color, JAPAN_GSI_ELEVATION_DECODER } from "@navaramap/three";
import {
  DefaultPlugin,
  type DefaultDescriptions,
} from "@navaramap/three_default_plugin";
import { PersonViewPlugin } from "@navaramap/three_plugins";

const plugin = new DefaultPlugin();
const view = new ThreeView<DefaultDescriptions>({
  shadow: true,
  backgroundColor: new Color().setStyle("#475668"),
});
view.addPlugin(plugin);

We will register the PersonViewPlugin next, before calling view.init().

Adding the PersonViewPlugin

The plugin handles the character (model, animation, movement) and the camera. Set minAlt to a negative value so the character can walk below ground level, and choose a tight cameraDistance that works inside a building.

const startLat = 35.6341630282;
const startLng = 139.7420527162;
const startHeight = 23.0;
const startHeading = Math.PI * 1.6;

const personView = new PersonViewPlugin({
  character: {
    modelUrl: "/Soldier.glb",
    animation: {
      idleClip: "Idle",
      walkClip: "Walk",
      dashClip: "Run",
      speed: 1.0,
      crossfadeDuration: 0.3,
    },
    modelRotationOffset: { x: Math.PI / 2, y: 0, z: 0 },
    modelScale: 1,
    castShadow: true,
    receiveShadow: true,
  },
  moveSpeed: 5,
  altSpeed: 5,
  rotationSpeed: 2,
  cameraDistance: 10,
  cameraLerpSpeed: 4,
  minAlt: -1000,
  maxAlt: 5000,
  startLat,
  startLng,
  startHeight,
  startHeading,
  allowCameraControl: true,
});

view.addPlugin(personView);
await view.init();

view.atmosphere.date.setHours(8);
view.toneMappingExposure = 10;

const layers = plugin.addDefaultPhotorealScene();
layers.sun.update({ sun: { castShadow: true } });

Preparing Model Data

This tutorial uses Soldier.glb from the official Three.js samples. Download it from the Three.js GitHub repository. Any animated GLTF model works — just match idleClip, walkClip and dashClip to the clip names your model exposes.

Adding Terrain and Map Tiles

Add terrain and satellite imagery tiles for the exploration area. Turn off the terrain skirt so the underground portion of buildings stays visible.

const terrainSource = view.addSource({
  type: "raster-dem",
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Digital Elevation Map
  //   https://maps.gsi.go.jp/development/ichiran.html
  url: "https://cyberjapandata.gsi.go.jp/xyz/dem_png/{z}/{x}/{y}.png",
  elevationDecoder: JAPAN_GSI_ELEVATION_DECODER(),
  minZoom: 6,
  maxZoom: 15,
});
view.addLayer({
  type: "terrain",
  source: terrainSource,
  terrain: {
    castShadow: true,
    receiveShadow: true,
    skirt: false,
  },
});

const hillshadeSource = view.addSource({
  type: "raster-dem",
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Digital Elevation Map
  //   https://maps.gsi.go.jp/development/ichiran.html
  url: "https://cyberjapandata.gsi.go.jp/xyz/dem_png/{z}/{x}/{y}.png",
  elevationDecoder: JAPAN_GSI_ELEVATION_DECODER(),
  minZoom: 6,
  maxZoom: 15,
});
view.addLayer({
  type: "raster",
  source: hillshadeSource,
  hillshade: {},
});

const photoSource = view.addSource({
  type: "raster-tile",
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Latest Nationwide Photo (Seamless)
  //   https://maps.gsi.go.jp/development/ichiran.html
  url: "https://cyberjapandata.gsi.go.jp/xyz/seamlessphoto/{z}/{x}/{y}.jpg",
  maxZoom: 18,
});
view.addLayer({
  type: "raster",
  source: photoSource,
});

Loading 3D Tiles Building Models

Load a Cesium 3D Tiles building such as those published by PLATEAU and enable shadows so the interior reads as a real space.

const buildingSource = view.addSource({
  type: "3d-tiles",
  // Credit:
  // - [UC23-11] Advanced Area Management Using Storytelling GIS - MLIT PLATEAU
  //   https://www.geospatial.jp/ckan/dataset/plateau-uc23-11
  url: "https://assets.cms.plateau.reearth.io/assets/c1/28f9ff-e9d0-44df-b092-88ac7ebdfa42/tngw_4gaiku/tileset.json",
});
view.addLayer({
  type: "3d-tiles",
  source: buildingSource,
  model: {
    show: true,
    castShadow: true,
    receiveShadow: true,
    height: -35, // Ellipsoidal height adjustment
  },
});

About Ellipsoidal Height Adjustment

3D Tiles models may be placed based on ellipsoidal height (WGS84). In Japan, there is a difference between ellipsoidal height and geoid height, so adjustment using the height property may be necessary.

Starting the Plugin

Once the scene is configured, start the plugin. This loads the GLTF model and begins the per-frame loop that drives the character and camera.

personView.start();

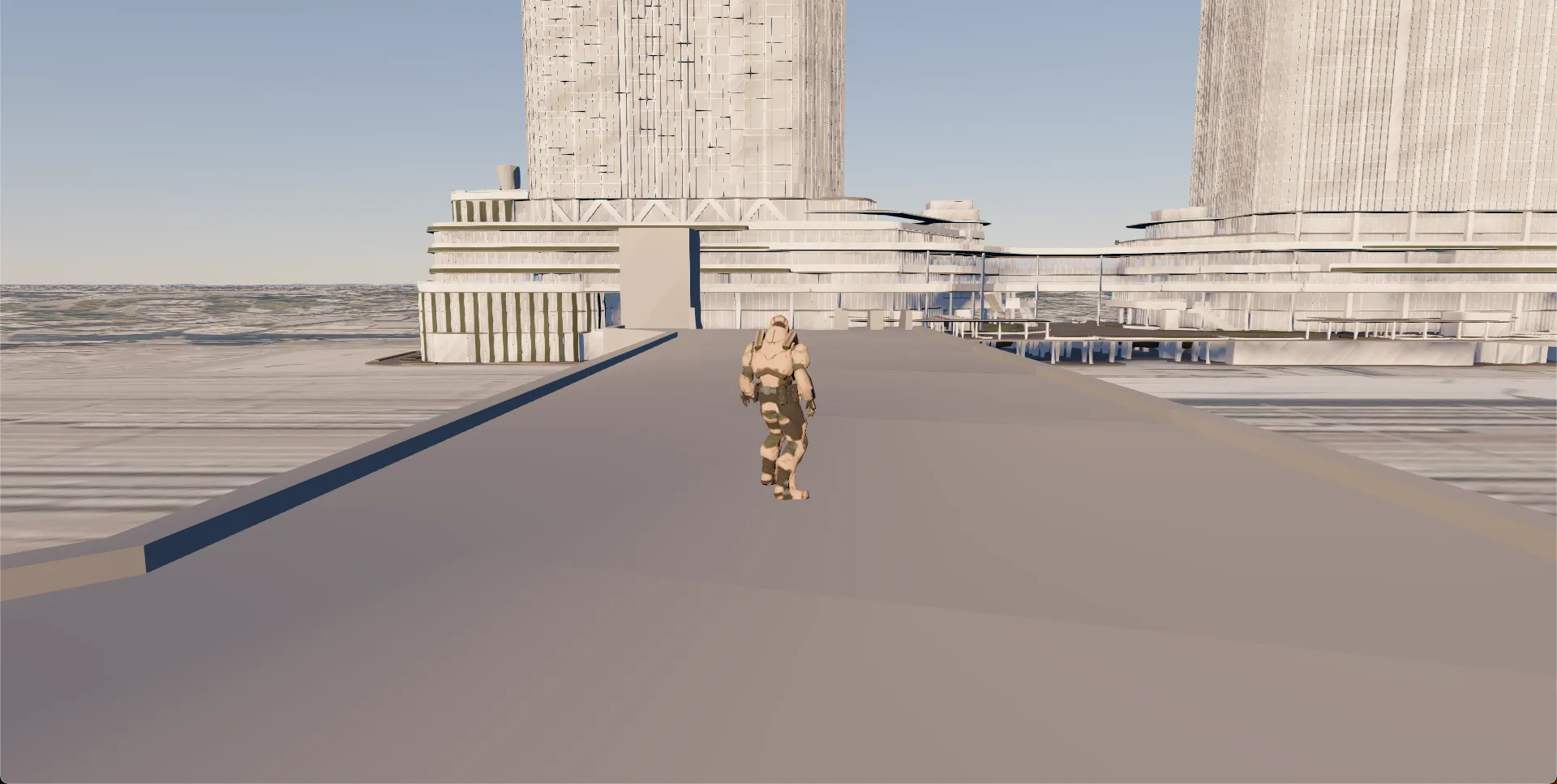

That’s it — the character now responds to the keyboard and the camera follows it.

Default key bindings

Key	Action
W / S	Move forward / backward
A / D	Turn left / right
Arrow Up / Space	Ascend
Arrow Down / Ctrl	Descend
Shift	Dash (switches to dashClip)
Alt (hold)	Free-orbit camera
V	Toggle third-person / first-person

The default chase view (TPV) is third person. Press V to switch to first person (FPV); the character mesh is hidden automatically. Hold Alt to take manual control of the camera while keeping it focused on the character.

Reacting to Movement

The plugin emits the current geographic position, heading, speed, and view mode on every frame. Use onStateChange() to drive UI such as a HUD or a minimap.

const unsubscribe = personView.onStateChange((state) => {
  console.log(state.lat, state.lng, state.alt, state.heading, state.mode);
});

// Later — when you are done
unsubscribe();

Teleporting Between Scenes

Use teleport({ lng, lat, alt, heading? }) to jump the character to a new place — for example when the user picks a different building from a menu. To rotate in place use setHeading(), and to adjust the camera pitch use setCameraPitch() / setFpvPitch().

personView.teleport({ lng: 139.7397, lat: 35.6352, alt: 45 });

The chase camera snaps to the new location and the state listener fires once with the updated position.

Complete Example

A complete example that combines the plugin with a 3D Tiles building. The code is intentionally short: the plugin owns the input, character, animation, and camera.

import ThreeView, { Color, JAPAN_GSI_ELEVATION_DECODER } from "@navaramap/three";
import {
  DefaultPlugin,
  type DefaultDescriptions,
} from "@navaramap/three_default_plugin";
import { PersonViewPlugin } from "@navaramap/three_plugins";

const plugin = new DefaultPlugin();
const view = new ThreeView<DefaultDescriptions>({
  shadow: true,
  backgroundColor: new Color().setStyle("#475668"),
});

const startLat = 35.6341630282;
const startLng = 139.7420527162;
const startHeight = 23.0;
const startHeading = Math.PI * 1.6;

const personView = new PersonViewPlugin({
  character: {
    modelUrl: "/Soldier.glb",
    animation: {
      idleClip: "Idle",
      walkClip: "Walk",
      dashClip: "Run",
      speed: 1.0,
      crossfadeDuration: 0.3,
    },
    modelRotationOffset: { x: Math.PI / 2, y: 0, z: 0 },
    modelScale: 1,
    castShadow: true,
    receiveShadow: true,
  },
  moveSpeed: 5,
  altSpeed: 5,
  rotationSpeed: 2,
  cameraDistance: 10,
  cameraLerpSpeed: 4,
  minAlt: -1000,
  maxAlt: 5000,
  startLat,
  startLng,
  startHeight,
  startHeading,
  allowCameraControl: true,
});

view.addPlugin(plugin);
view.addPlugin(personView);
await view.init();

view.atmosphere.date.setHours(8);
view.toneMappingExposure = 10;

const layers = plugin.addDefaultPhotorealScene();
layers.sun.update({ sun: { castShadow: true } });

const terrainSource = view.addSource({
  type: "raster-dem",
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Digital Elevation Map
  //   https://maps.gsi.go.jp/development/ichiran.html
  url: "https://cyberjapandata.gsi.go.jp/xyz/dem_png/{z}/{x}/{y}.png",
  elevationDecoder: JAPAN_GSI_ELEVATION_DECODER(),
  minZoom: 6,
  maxZoom: 15,
});
view.addLayer({
  type: "terrain",
  source: terrainSource,
  terrain: {
    castShadow: true,
    receiveShadow: true,
    skirt: false,
  },
});

const hillshadeSource = view.addSource({
  type: "raster-dem",
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Digital Elevation Map
  //   https://maps.gsi.go.jp/development/ichiran.html
  url: "https://cyberjapandata.gsi.go.jp/xyz/dem_png/{z}/{x}/{y}.png",
  elevationDecoder: JAPAN_GSI_ELEVATION_DECODER(),
  minZoom: 6,
  maxZoom: 15,
});
view.addLayer({
  type: "raster",
  source: hillshadeSource,
  hillshade: {},
});

const photoSource = view.addSource({
  type: "raster-tile",
  // Credit:
  // - Geospatial Information Authority of Japan Tiles - Latest Nationwide Photo (Seamless)
  //   https://maps.gsi.go.jp/development/ichiran.html
  url: "https://cyberjapandata.gsi.go.jp/xyz/seamlessphoto/{z}/{x}/{y}.jpg",
  maxZoom: 18,
});
view.addLayer({
  type: "raster",
  source: photoSource,
});

const buildingSource = view.addSource({
  type: "3d-tiles",
  // Credit:
  // - [UC23-11] Advanced Area Management Using Storytelling GIS - MLIT PLATEAU
  //   https://www.geospatial.jp/ckan/dataset/plateau-uc23-11
  url: "https://assets.cms.plateau.reearth.io/assets/c1/28f9ff-e9d0-44df-b092-88ac7ebdfa42/tngw_4gaiku/tileset.json",
});
view.addLayer({
  type: "3d-tiles",
  source: buildingSource,
  model: {
    show: true,
    castShadow: true,
    receiveShadow: true,
    height: -35,
  },
});

personView.start();

Customization Tips

• Explore a different building: Change the cesium3dtiles layer URL to load a different PLATEAU model and call personView.teleport() to drop the character at the new location
• Adjust movement feel: Tweak moveSpeed, rotationSpeed, and altSpeed on the plugin config
• Use your own model: Pass a different character.modelUrl and update idleClip / dashClip to match the clips it ships with
• Lock camera to chase mode: The example sets allowCameraControl: true so the camera always orbits freely. Set it to false to require holding Alt for manual orbit while the chase shot follows automatically the rest of the time
• First-person at startup: Pass initialView: "fpv" to start in first person
• Custom key bindings: Use the keys option to remap any action (for example, keys: { ascend: ["Space"], descend: ["ControlLeft"] })
